Description

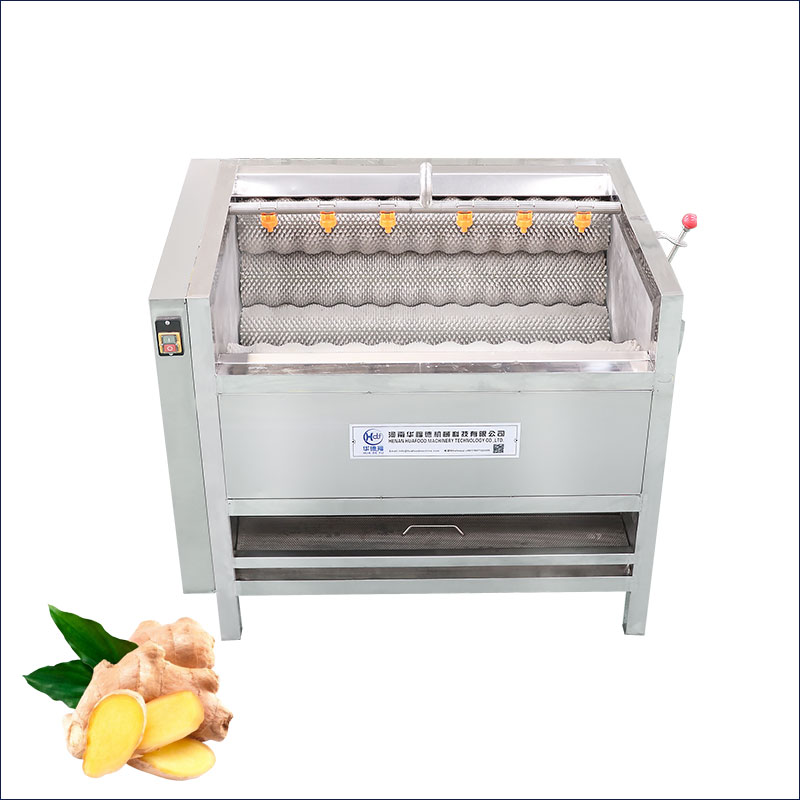

The Ginger Washing And Peeling Machine With Hard Brush Roller is a robust food‑grade stainless steel unit designed specifically for efficient handling of fresh ginger. Engineered with multiple hard-bristle rollers arranged in a U‑shaped groove, this machine simultaneously scrubs, peels, and rinses ginger roots—making it ideal for large-scale ginger processors, juice lines, and spice production facilities.

Ginger Washing And Peeling Machine Working Principle

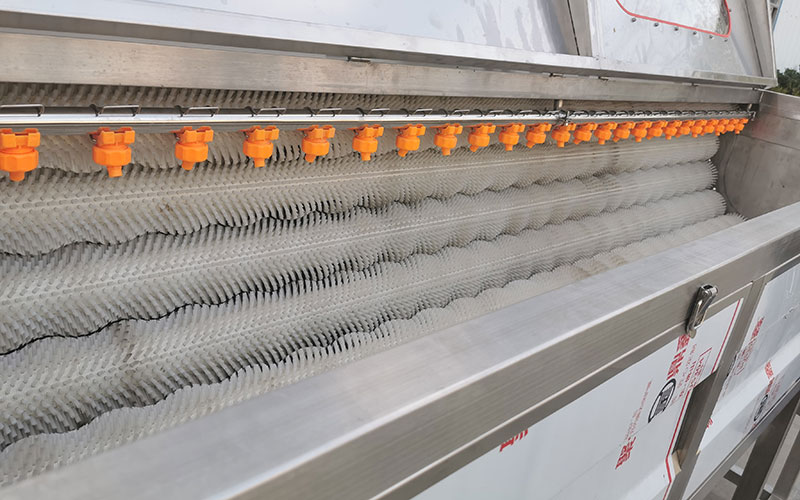

Continuous Brush Rotation – Hard and soft nylon brush rollers spin to tumble ginger, removing dirt and peeling the outer layer through friction

Automatic Water Spray – An overhead spray system rinses debris and soil during brushing, enhancing cleaning efficiency .

Auto Discharge & Drainage – Peeled ginger advances automatically toward the discharge port, while residue and wastewater are separated and drained cleanly .

Ginger Peeling Machine Parameter

Model	Machine Size (mm)	Power (kw)	Weight (kg)	Output（kg/h）
LMSQ-2000	2800*850*1300mm	3.55kw	450kg	2000kg/h
LMSQ-2400	3200*850*1400mm	3.75kw	480kg	2400kg/h
LMSQ-2600	3400*850*1450mm	4.75kw	600kg	3000kg/h

Ginger Washing Peeling Machine Features

Food‑Grade 304 Stainless Steel – Durable, hygienic, and corrosion-resistant

Dual Brush Roller System – Combines hard bristles for peeling with soft bristles for gentle cleaning

U‑Shaped Nylon Roller Arrangement – Maximizes contact area to ensure effective friction and cleaning .

Continuous Operation – Supports uninterrupted washing and peeling with automatic discharge and drainage systems

Ginger Washing Machine Advantages

High Efficiency – Can clean and peel 400–3000 kg/hr, depending on model

Space‑Saving Compact Design – Simple structure with automatic discharge makes it easy to integrate .

Durable Brush Rollers – Hard brush rollers use 70 filaments of tough nylon, soft rollers 20–25 for gentle cleaning

Energy‑Efficient & Low Maintenance – Uses a multi-stage motor and corrosion-resistant materials for long service life .

Benefits

Versatility – Also suitable for potatoes, carrots, taro, and other root vegetables

Labor & Time Savings – Replaces manual peeling, saving up to 42% labor and 47% processing time

Improved Product Quality – Thorough cleaning and skin removal preserves ginger’s freshness and aroma.

Clean Production Workflow – Integrated drainage and debris separation promote sanitary forms and environmental compliance

Conclusion

In summary, the Ginger Washing And Peeling Machine With Hard Brush Roller offers an efficient, hygienic, and cost-effective solution for large‑scale ginger processing. Its innovative roller design, robust stainless steel build, and automated washing and peeling ensure high throughput with minimal labor.
