Description

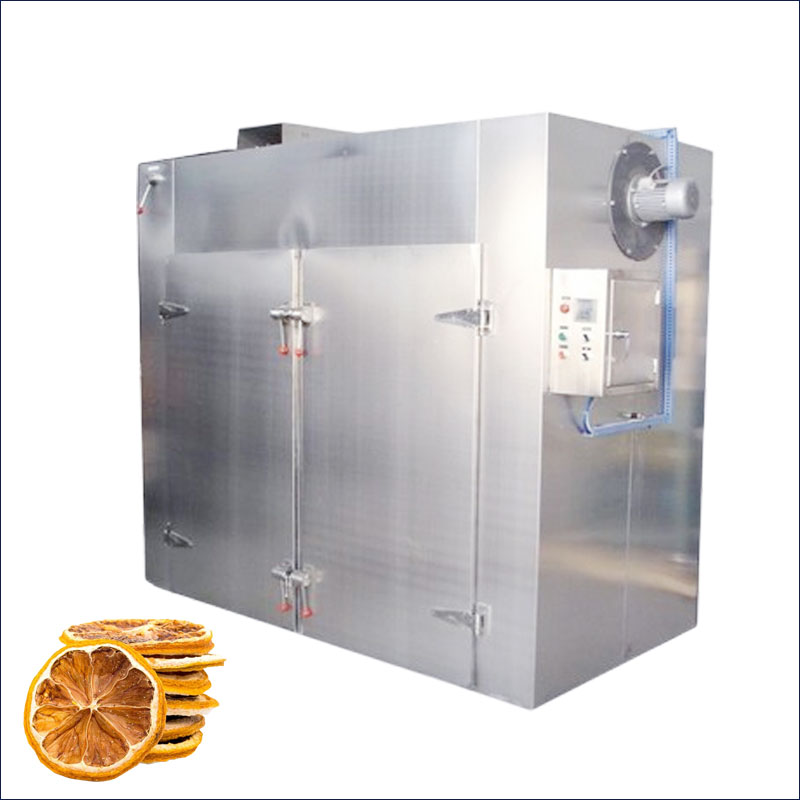

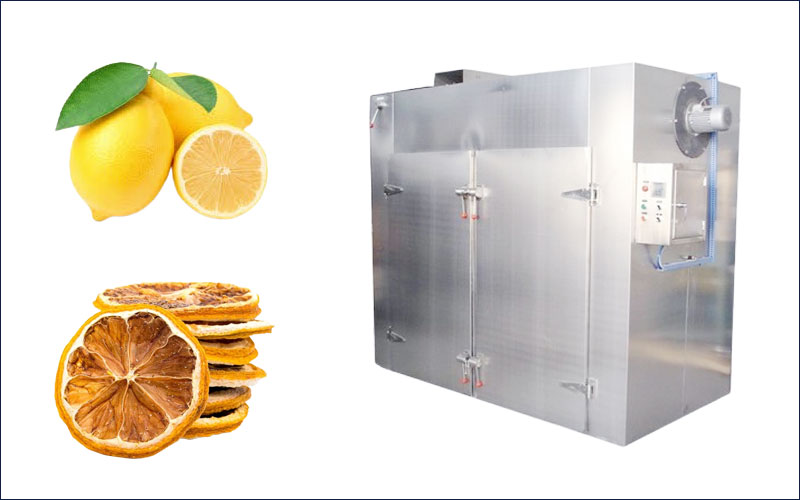

Lemon drying machine is specially designed for drying highly acidic fruits such as lemons. It is made of 316L surgical grade stainless steel to ensure long-term stable operation in corrosive environments such as citric acid. Its excellent corrosion resistance ensures the hygienic safety of the drying process and extends the service life of the equipment.
Lemon Drying Machine Working Principle
The lemon dryer adopts the principle of hot air circulation. By precisely controlling the temperature and wind speed, the hot air can evenly penetrate the lemon slices and take away the moisture. This method not only ensures the uniform dryness of the lemon slices, but also maximizes the retention of the nutrients and flavor of the lemon.
Lemon Dehydrating Machine Parameter
| Parameter | Specification |
| Material | 316L Surgical Stainless Steel |
| Voltage | 380V/415V 3-phase (±10%) |
| Power Consumption | 15-25 kW (per 200kg batch) |
| Overall Dimensions | 2500(L)×1300(W)×2300(H) mm |
| Tray Dimensions | 1000×600 mm (per tray) |
| Tray Quantity | 24 layers (stackable) |
| Weight | 1850 kg (net) |
| Temp. Range | 40-75°C (±0.5°C) |
| Airflow Velocity | 0.8-2.5 m/s adjustable |
| Drying Time | 6-10 hours |
| Batch Capacity | 200-2000 kg fresh lemons |
| Control System | PLC + Touchscreen |
Lemon Dryer Features
Multi-layer tray design: increase drying area and increase output.
Hot air circulation system: improve drying efficiency, shorten drying time, and reduce energy consumption.
Made of 316L stainless steel: ensure long-term stable operation of the equipment in an acidic environment to avoid corrosion.
Accurate temperature and humidity control system: ensure uniform dryness of the lemon slices to prevent over-baking or under-drying.
Lemon Dehydrator Advantages
Easy operation: Easy to use and reduce labor costs.
Excellent corrosion resistance: Extend equipment life and reduce maintenance costs.
High efficiency and energy saving: Shorten drying time, reduce energy consumption, and save operating costs.
Maintain lemon quality: Precisely control temperature and humidity to maximize the retention of lemon nutrients and flavor.
Conclusion
316L stainless steel lemon dryer is an ideal choice for lemon processing companies. It has the advantages of corrosion resistance, high efficiency and energy saving, and quality maintenance, which can help enterprises produce high-quality dried lemon slices, increase profit margins, and achieve sustainable development. If you want to know more about the equipment, please leave us a message online, and we will serve you wholeheartedly!
